New House Plan 1 Kanal Where Minimalism Meets Comfort


Design ID: PGPLHAA058
  • 4
  • Bedrooms
  • 4
  • Bathrooms
  • 45 x 100
  • Plot Dimensions
  • 2
  • Floors
  • 4680
  • Covered Area

1Design Information
2Personal Information
3Payment Information

Design Information

This House plan 1 kanal stands as a striking exemplar of contemporary architecture, skillfully blending locally sourced brick materials with an extremely modern design ethos. The incorporation of arches into its façade not only elevates the structure’s visual appeal but also does so within the context of a thoroughly modern setting, while maintaining a respectful nod to traditional architectural styles.

On the right side of the house, a substantial, towering arch takes center stage, artfully interrupted by a circular balcony at its midpoint. The beautiful brick jali, extending from ground level to the parapet, adds an enchanting layer of intricacy to the design. To maintain visual equilibrium, two carefully carved grooves on the left side harmonize with the jali on the right.

A terrace provides shade for the car porch below. Positioned behind this car porch, one discovers a unique niche, adorned with elegant arches, which could have perhaps served as the house’s main entrance. However, the entrance has been strategically placed on the right side wall, a thoughtful choice aimed at maximizing privacy.

An arcade gracefully stretches along the terrace, offering support for wooden louvers at its zenith. This clever architectural feature not only adds functionality but also creates a semi-covered area on the terrace, further enhancing the house’s appeal.

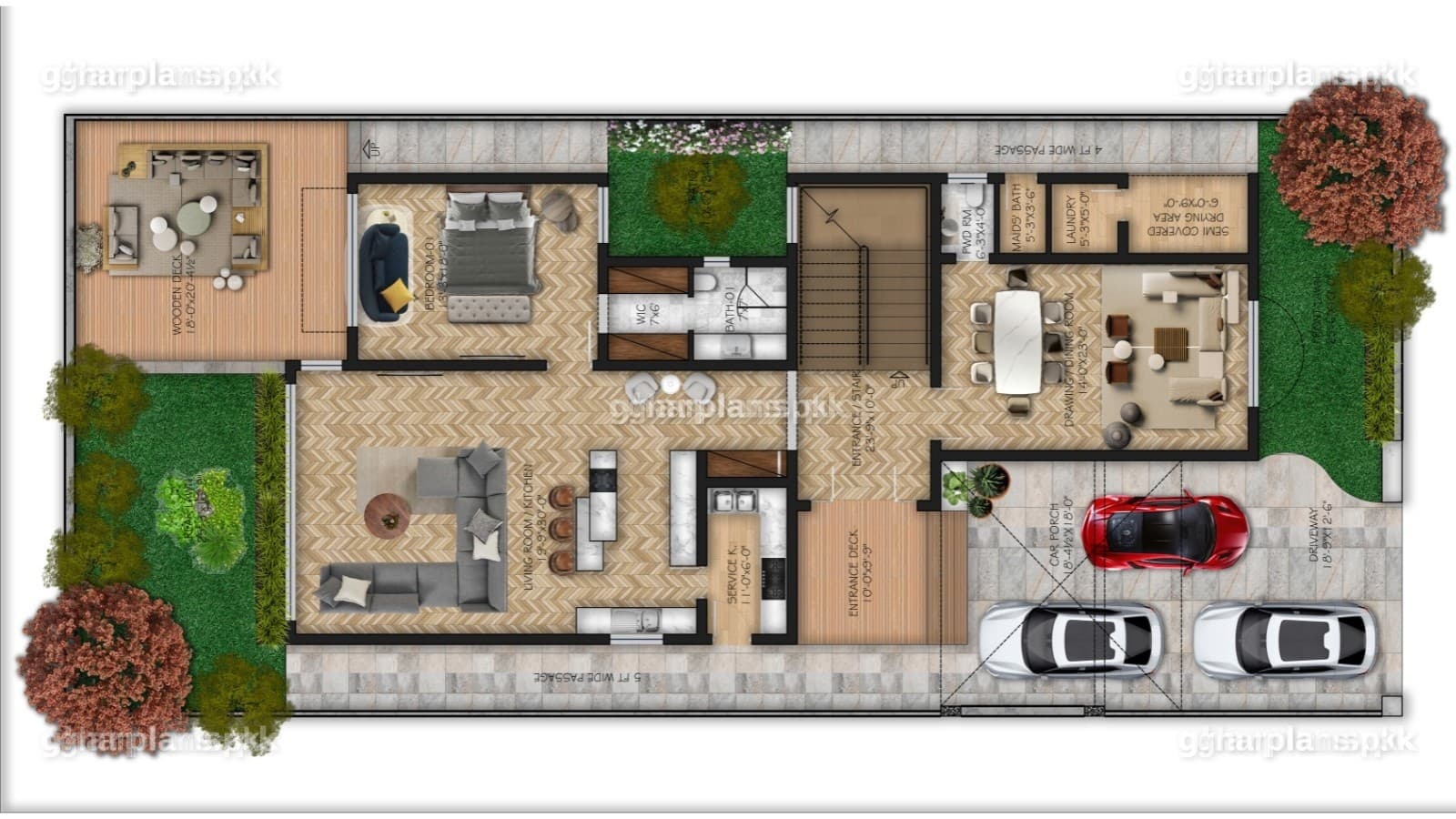

The architectural layout of this house is a display of minimalism combined with exceptional uniqueness. It efficiently minimizes the use of dividing walls, creating a sense of openness and flow throughout the space. As you approach the front, you’re greeted by a spacious car porch, while a standard ten-foot lawn graces the right side of the property. The car porch leads to the entrance deck, with access to the interior provided by the right side wall. Upon entering, you’re welcomed by an ample stair lobby that leads to the first floor.

To the front of the stair lobby, you’ll find a versatile combined drawing room and dining area, both offering lovely views of the front lawn. Adjacent to the dining area, a powder room has been thoughtfully positioned. From an external passage, you can access the maids’ bathroom, laundry area, and a clothes drying space.

Continuing from the entrance lobby toward the living room, a small storage area doubles as a mudroom. These cozy alcoves suddenly reveal the expansive and luxurious living room, seamlessly integrated with the kitchen. This central space serves as the heart of the home, with its vistas opening up to the rear lawn. A service kitchen is located behind the main open kitchen and can also be accessed from the external passage.

On the ground floor, there is a bedroom featuring a spacious walk-in closet and an attached bathroom. The bedroom’s windows provide delightful views of the wooden deck outside, while on the opposite side, a charming small patio can be observed when ascending the stairs from the stair lobby.

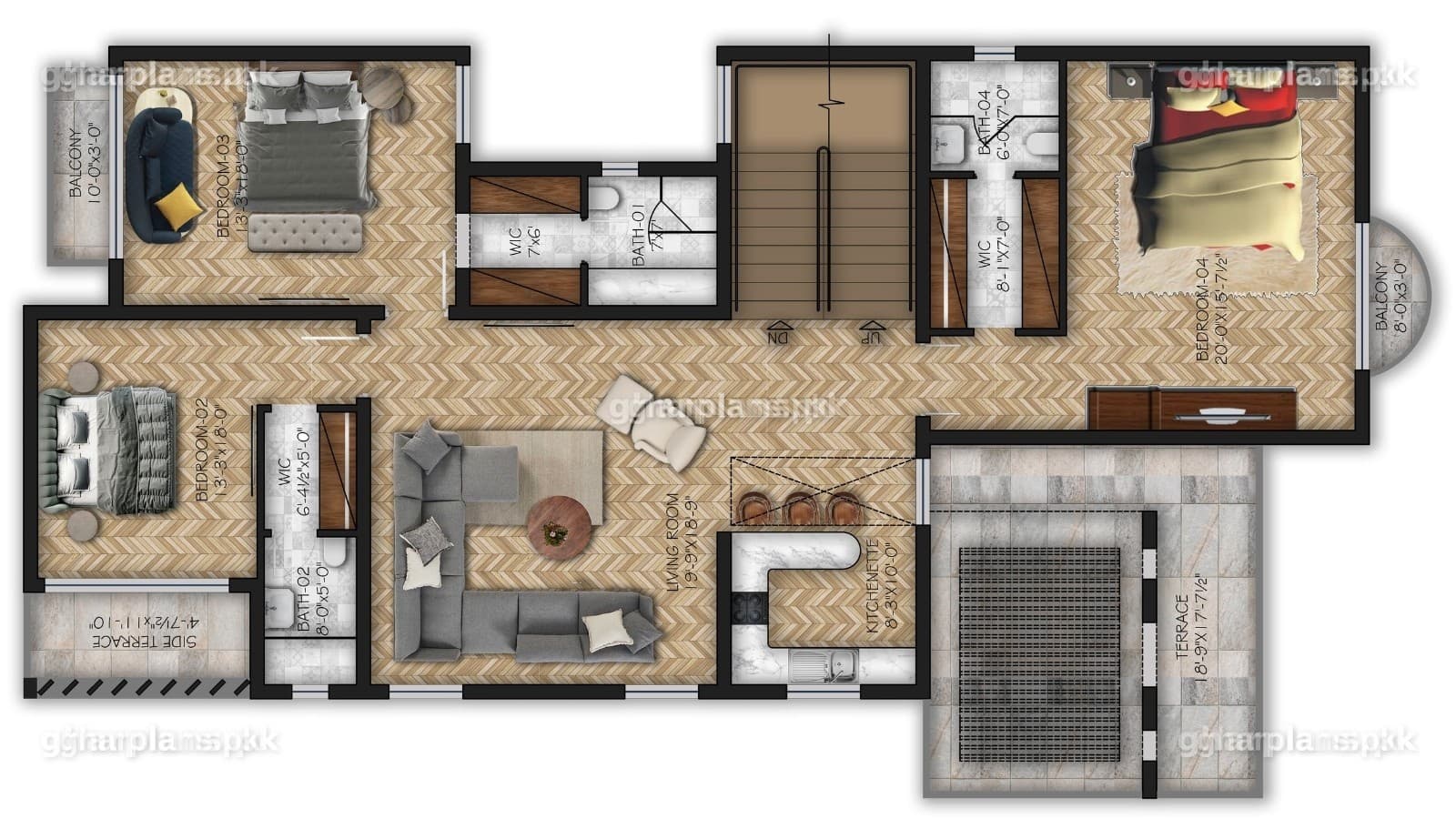

Moving to the first floor, the stair lobby leads to a generous living room, complete with a semi-closed kitchen that opens up to a terrace. The terrace wall features an innovative opening that transforms into a skylight, infusing the space with natural light. At the front of the house, there is a spacious bedroom with a walk-in closet and an attached bathroom, overlooking the lawn. Towards the rear of this floor, two bedrooms are given with attached bathrooms, walk-in closets, and their own private balconies or terraces, providing serene retreats with a touch of outdoor charm.


Updated on January 4, 2024 at 4:49 pm
  • Design Size: 4680 sqf
  • Bedrooms: 4
  • Bathrooms: 4
  • Plot Dimensions: 45 x 100
  • Floors: 2
  • Terrace: Front, Side, Back
