Modern House on Irregular Plot Elevation Design


Design ID: PGPLHAA064
  • 4
  • Bedrooms
  • 4
  • Bathrooms
  • 52' X 54'
  • Plot Dimensions
  • 2
  • Floors
  • 3,548
  • Covered Area

1Design Information
2Personal Information
3Payment Information

Design Information

This double-storey 12 Marla house features an elevation design that redefines luxury in a modern setting. The material palette has been kept neutral and blends perfectly with the natural texture of wood. The huge wooden entrance door is highlighted by its geometric pattern in brass inlay. A balcony hanging over the door further emphasizes the entrance. Dark brown PVC fluted panels finish the wall behind the balcony. On the right side, a wide column stands tall, with two vertical grooves running in the middle. The column supports the shade over the windows.
There are no windows given on the left side volume, giving it a slightly brutal appearance. The terrace is accessed by a window on the side instead. This wall is finished in lightly textured grey paint, with vertical grooves running all over the front facade. Light fixtures added on this face are incorporated into the design. The terrace on this side is kept a little low to provide shade to the car porch below.

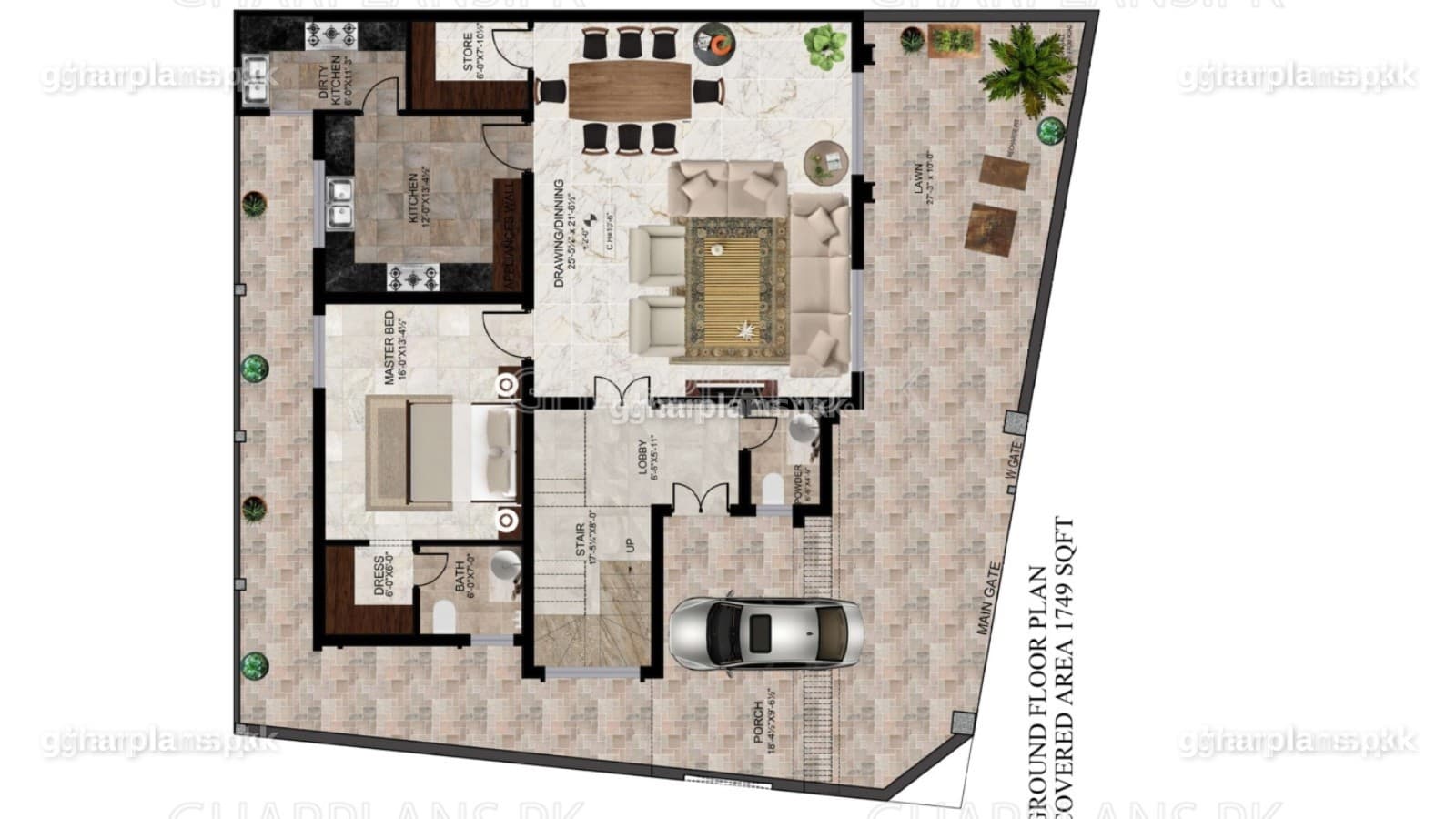

The proposed layout is for a 12 Marla double-storey house on an irregular plot. The house features a spacious car porch and lawn at the front, provided within the setbacks. Ample passages are left at the side and the rear of the house.
Upon entrance, a spacious double-height lobby leads to the drawing room cum dining room, a spacious stair hall, and a powder room placed at the front. A separate restroom has been placed beside the powder room for drivers and maids and can be accessed from the side passage.
The lounge is placed in the middle, with views opening towards the central patio. A huge kitchen, along with a service kitchen, is placed behind the main kitchen. An additional room is provided for prayer right opposite the patio. Two bedrooms with walk-in closets and attached bathrooms are located at the back. A laundry room is provided in the rear passage.

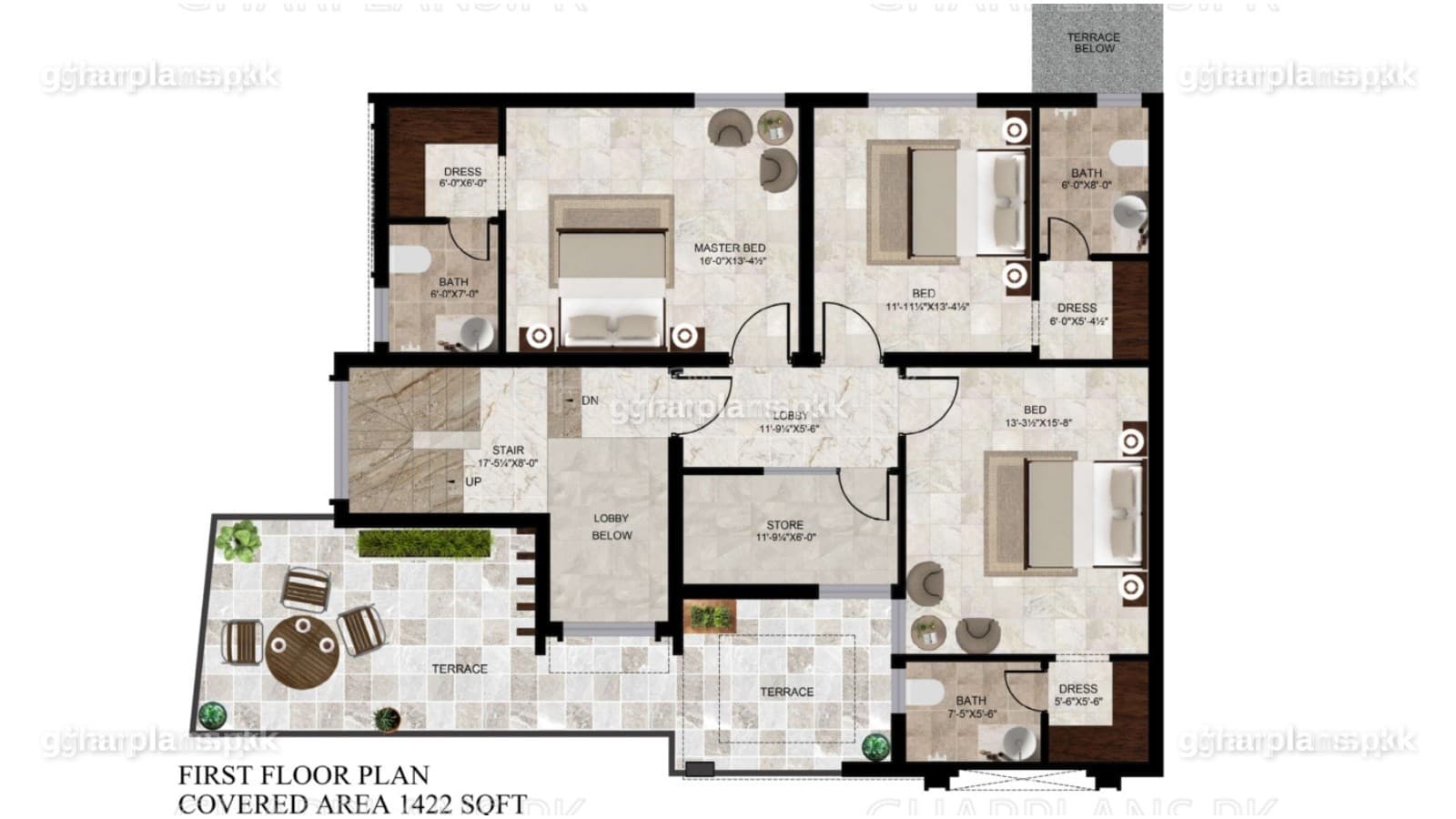

The first floor is accessed from the stairway leading upstairs from the double-height lobby. A bedroom with an attached bathroom and a walk-in closet has been placed at the front. A mini study corner is also provided in this room. On the other side, a large storeroom is located. This room provides access to the side terrace and can also be used as a gym. The lounge is placed in the middle, with views opening towards the family terrace. A mini kitchen is placed behind the lounge, giving access to an additional terrace beside it. The rear side of this floor is occupied by two bedrooms with walk-in closets and attached bathrooms.

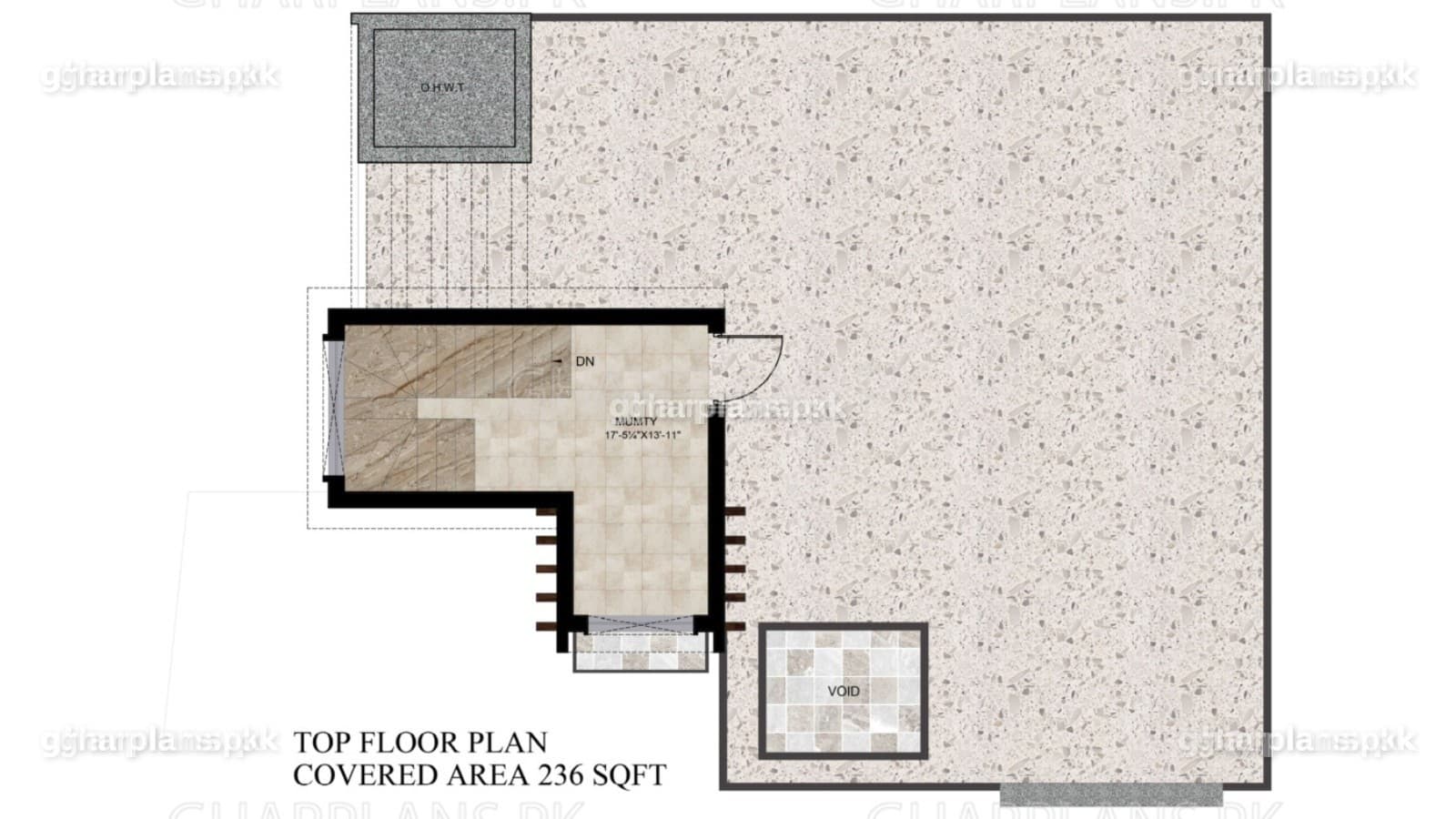

The rooftop features a spacious servant room with a mini kitchen and bathroom. This unit can be accessed from a spiral staircase at the back.

For further updates vist our youtube channel:


Updated on March 30, 2024 at 12:58 pm
  • Design Size: 3,548 sqft
  • Bedrooms: 4
  • Bathrooms: 4
  • Design Status: 12 Marla
  • Plot Dimensions: 52' X 54'
  • Floors: 2
  • Terrace: Front
